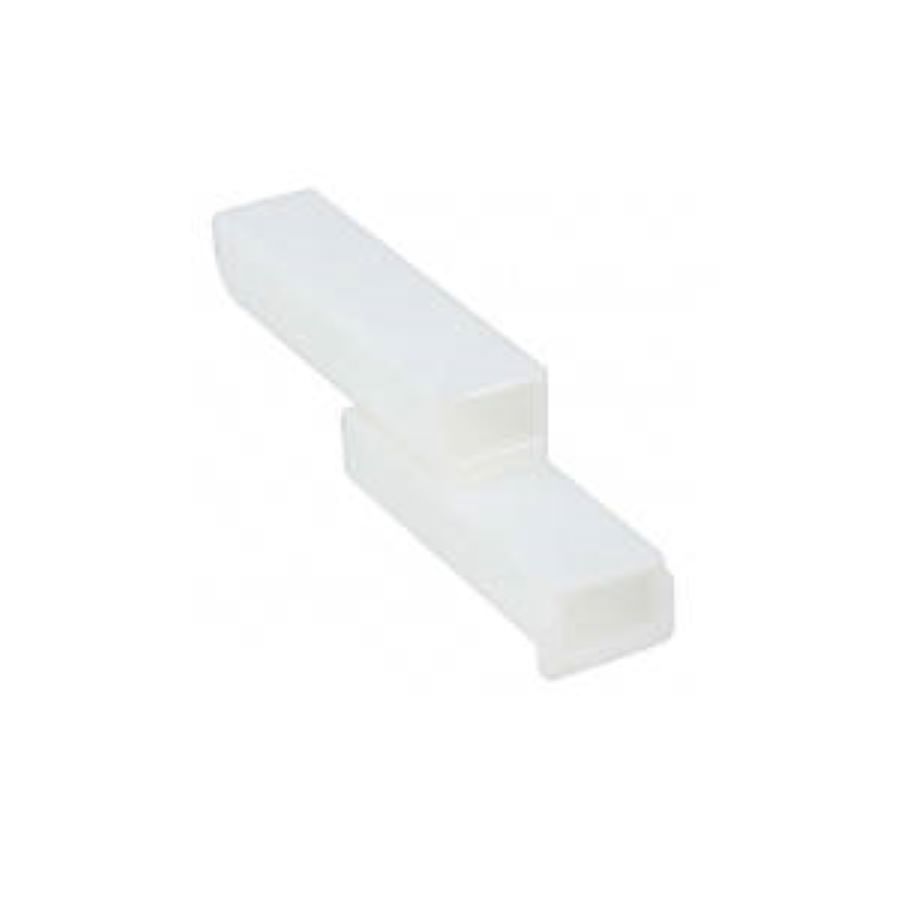

174712-1
Manufacturer:
TE Connectivity
Mfr.Part #:
174712-1
Datasheet:
Description:
Terminals Free Hanging Receptacle
| Parameter | Value |
|---|---|
| Length | 9.6 mm |
| Termination | Quick Connect |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 43.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 6.65 mm |
| Type | Tab Housing |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Body Material | Nylon |
| Tab Width | 6.35 mm |
| Connector Type | Plug |
| Insulation | Insulated |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Natural |
| Termination Style | Crimp |
| Stud Size | 4.8 mm |
Stock: 11051
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.08199 | $0.81990 |
| 50 | $0.07581 | $3.79050 |
| 100 | $0.07010 | $7.01000 |
| 500 | $0.06246 | $31.23000 |
| 1000 | $0.05566 | $55.66000 |
| 3000 | $0.05070 | $152.10000 |
| 5000 | $0.04944 | $247.20000 |
| 10000 | $0.04822 | $482.20000 |
